从画面，到实物From a picture to an object
3D 打印3D prints
把画面里的小物件带到手边。从一直在这里的猫咪开始。A small collection of things to make tangible. Beginning with the cat who has always been here.
01 / v1

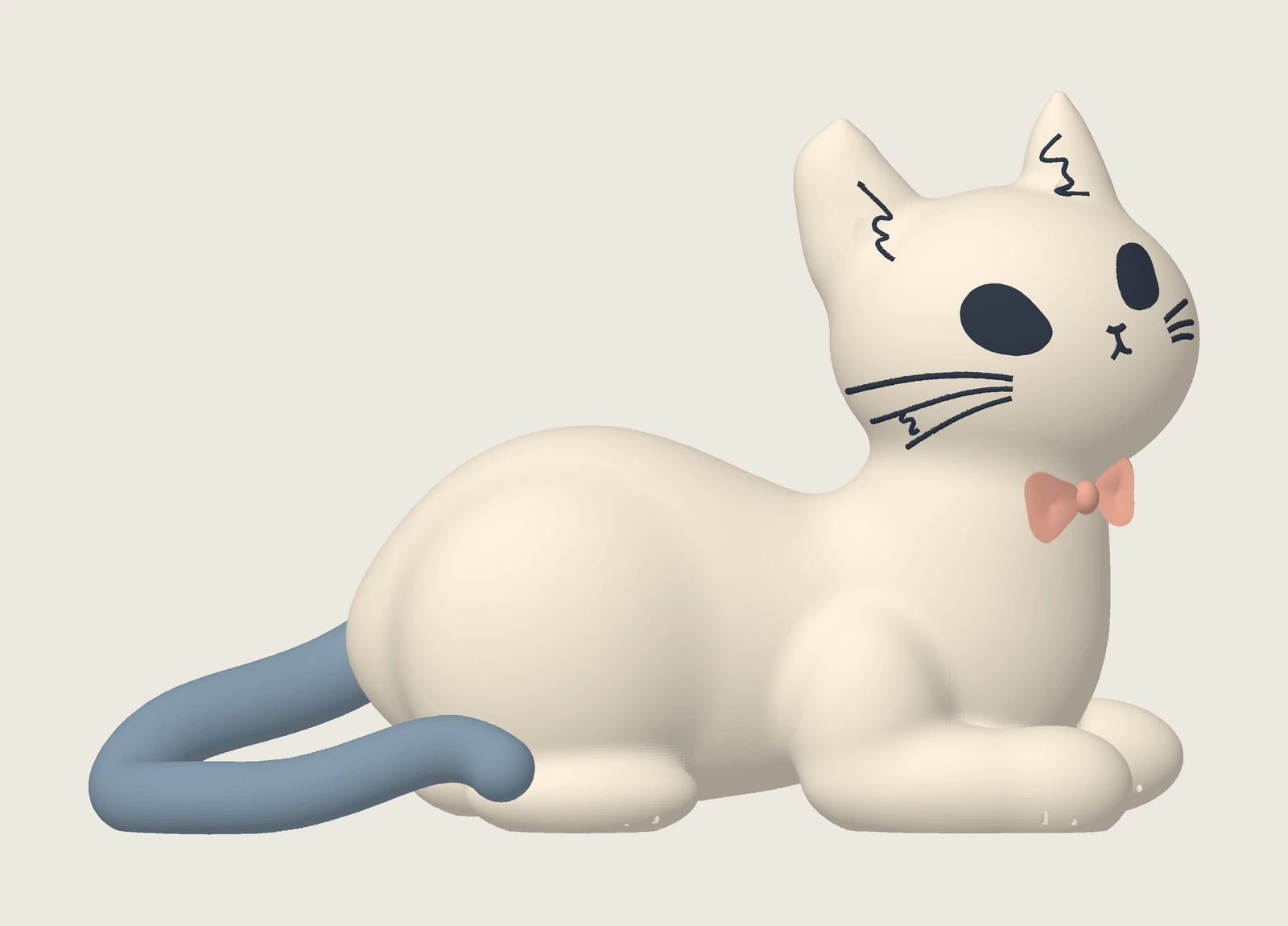

模型预览Model preview
数字原型 · v1Digital prototype · v1
miaolay 猫咪miaolay cat
让开场里的猫咪，成为可以放在手边的小物件。四种颜色，文件按 P1S 首件打印准备。The cat from the opening, made into a small object. A four-color model with files prepared for a first print on the P1S.
- 高度Height
- 100 mm
- 打印机Printer
- P1S · 0.4 mm
- 材料Material
- PLA · AMS 四色PLA · four-color AMS
数字原型，尚未实物试打。在 Bambu Studio 中打开模型、导入预设并对应四种耗材，检查切片层后再打印。Digital prototype, not yet test-printed. Open the model and preset in Bambu Studio, assign the four filaments, then inspect the sliced layers before printing.
从原图出发From the original
保留这张安静的脸The same quiet face
以 miaolay-cat-hero.png 为主蓝本，按原图描绘实心深色眼形、小巧鼻口和不对称领结。胡须调整为贴合脸部的实体细纹。miaolay-cat-hero.png is the primary reference. The solid dark eyes, tiny nose and mouth, and asymmetric bow are traced from the illustration. The whiskers become supported ridges on the face.
一张插画无法确定看不见的厚度。侧面和背面由建模补足，首件实物打印后仍需继续校正。A single illustration does not define unseen depth. The side and back are reconstructed volumes, and the model remains open to refinement after the first physical print.
拓竹 P1SBambu Lab P1S
首件打印设置A first-print setup
适用于 PLA 和 0.4 mm 喷嘴的首件预设。3MF 保存模型分件与颜色，工艺预设单独提供打印参数；打印时长和耗材量以最终切片为准。A conservative starting preset for PLA and a 0.4 mm nozzle. The 3MF contains the model parts and colors; the separate process preset supplies the print settings. Print time and filament use depend on the final slice.
- 层高Layer height
- 0.12 mm · 首层 0.20 mm0.12 mm · first layer 0.20 mm
- 墙层 / 填充Walls / infill
- 3 层墙 · 15% 螺旋体3 walls · 15% gyroid
- 顶部 / 底部壳层Top / bottom shells
- 6 / 5 层6 / 5 layers
- 外墙速度Outer wall speed
- 40 mm/s
- 支撑Supports
- 自动树状 · 30° 阈值 · 0.24 mm 间隙Auto tree · 30° threshold · 0.24 mm gap
- 附着 / 换色Adhesion / color changes
- 5 mm 外侧裙边 · 开启擦料塔5 mm outer brim · prime tower on
